| SEAL INFORMATION | |
|---|---|
| MATERIAL | BUNA-N |
| TEMPERATURE RANGE | -22° to +212° F |
| PART NUMBER | (Prefix) (Size) |
| SWNB | |||||||||
|
|
||||||||

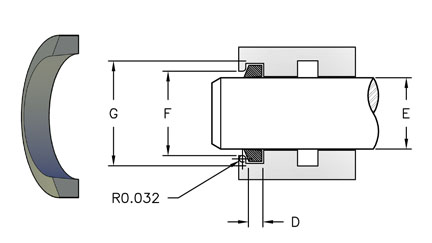

| SWNB Wiper RingsPart # | Groove Dia. (in) | Groove Width (in) | Rod Size (in) | Throat Dia. (in) | Descriptions |
|---|---|---|---|---|---|
| SWNB-100 | 1.240 | 0.160 | 1 | 1.080 | SWNB Wiper Rings |
| SWNB-112 | 1.375 | 0.160 | 1-1/8 | 1.210 | SWNB Wiper Rings |
| SWNB-125 | 1.490 | 0.170 | 1-1/4 | 1.330 | SWNB Wiper Rings |
| SWNB-137 | 1.625 | 0.170 | 1-3/8 | 1.460 | SWNB Wiper Rings |
| SWNB-150 | 1.770 | 0.180 | 1-1/2 | 1.590 | SWNB Wiper Rings |
| SWNB-175 | 2.030 | 0.190 | 1-3/4 | 1.850 | SWNB Wiper Rings |
| SWNB-187 | 2.160 | 0.190 | 1-7/8 | 1.970 | SWNB Wiper Rings |
| SWNB-200 | 2.300 | 0.200 | 2 | 2.100 | SWNB Wiper Rings |
| SWNB-212 | 2.430 | 0.210 | 2-1/8 | 2.230 | SWNB Wiper Rings |
| SWNB-225 | 2.570 | 0.210 | 2-1/4 | 2.630 | SWNB Wiper Rings |
| SWNB-237 | 2.700 | 0.220 | 2-3/8 | 2.490 | SWNB Wiper Rings |
| SWNB-250 | 2.840 | 0.220 | 2-1/2 | 2.610 | SWNB Wiper Rings |
| SWNB-262 | 2.970 | 0.230 | 2-5/8 | 2.740 | SWNB Wiper Rings |
| SWNB-275 | 3.110 | 0.230 | 2-3/4 | 2.870 | SWNB Wiper Rings |
| SWNB-287 | 3.240 | 0.240 | 2-7/8 | 3.000 | SWNB Wiper Rings |
| SWNB-300 | 3.380 | 0.240 | 3 | 3.130 | SWNB Wiper Rings |
| SWNB-312 | 3.500 | 0.250 | 3-1/8 | 3.260 | SWNB Wiper Rings |
| SWNB-350 | 3.920 | 0.270 | 3-1/2 | 3.640 | SWNB Wiper Rings |
| SWNB-362 | 4.050 | 0.270 | 3-5/8 | 3.770 | SWNB Wiper Rings |
| SWNB-375 | 4.190 | 0.280 | 3-3/4 | 3.900 | SWNB Wiper Rings |
| SWNB-62 | 0.820 | 0.140 | 5/8 | 0.700 | SWNB Wiper Rings |
| SWNB-75 | 0.950 | 0.140 | 3/4 | 0.820 | SWNB Wiper Rings |
| SWNB-87 | 1.080 | 0.150 | 7/8 | 0.950 | SWNB Wiper Rings |
