HSU

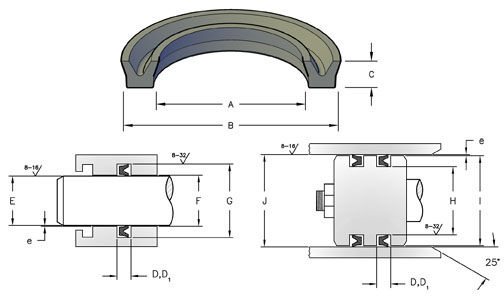

Style HSU u-seals are precision molded from 90 Dureometer Buna-N rubber or 90 A Fluorocarbon (suffix 'V') - 90 Duro Rubber for abrasion resistance and Fluorocarbon for heat resistance. These seals are commonly found in industrial cylinders, as piston, rod and cushion seals.

SEAL INFORMATION
MATERIAL 90A BUNA-N RUBBER
90A FLUOROCARBON
TEMPERATURE RANGE BUNA-N: -40° to +250° F
FC: -20° to +400° F
PRESSURE RANGE 0 to 2,000 PSI
PART NUMBER (Prefix)(CS) - (Inside Dia) - (Height)- (90 Duro)
Part # I.D. (in) Height (in) Cross Section (in) O.D. (in)
HSU12-0.75-12-90D 3/4 1/8 1/8 1
HSU12-0.75-12-90DV 3/4 1/8 1/8 1
HSU15-1.18-15-90D 1-3/16 5/32 5/32 1-1/2
HSU15-1.18-15-90DV 1-3/16 5/32 5/32 1-1/2
HSU15-1.25-15-90D 1-1/4 5/32 5/32 1 9/16
HSU15-1.25-15-90DV 1-1/4 5/32 5/32 1 9/16
HSU18-1.62-18-90D 1-5/8 3/16 3/16 2
HSU18-1.62-18-90DV 1-5/8 3/16 3/16 2
HSU18-2.12-18-90D 2-1/8 3/16 3/16 2-1/2
HSU18-2.12-18-90DV 2-1/8 3/16 3/16 2-1/2
HSU21-2.81-21-90D 2-13/16 7/32 7/32 3-1/4
HSU21-2.81-21-90DV 2-13/16 7/32 7/32 3-1/4
HSU25-3.50-25-90D 3-1/2 1/4 1/4 4
HSU25-3.50-25-90DV 3-1/2 1/4 1/4 4
HSU25-4.50-25-90D 4-1/2 1/4 1/4 5
HSU25-4.50-25-90DV 4-1/2 1/4 1/4 5
HSU28-4.43-28-90D 4-7/16 9/32 .280 5
HSU28-4.43-28-90DV 4-7/16 9/32 .280 5
HSU28-5.43-28-90D 5-7/16 9/32 .280 6
HSU28-5.43-28-90DV 5-7/16 9/32 .280 6
HSU28-6.43-28-90D 6-7/16 9/32 .280 7
HSU28-6.43-28-90DV 6-7/16 9/32 .280 7
HSU31-5.37-31-90D 5-3/8 5/16 5/16 6
HSU31-5.37-31-90DV 5-3/8 5/16 5/16 6
HSU31-6.37-31-90D 6-3/8 5/16 5/16 7
HSU31-6.37-31-90DV 6-3/8 5/16 5/16 7
HSU31-7.37-31-90D 7-3/8 5/16 5/16 8
HSU31-7.37-31-90DV 7-3/8 5/16 5/16 8
HSU34-9.31-34-90D 9-5/16 11/32 11/32 10
HSU34-9.31-34-90DV 9-5/16 11/32 11/32 10
HSU37-11.25-37-90D 11-1/4 3/8 3/8 12
HSU37-11.25-37-90DV 11-1/4 3/8 3/8 12
HSU40-13.18-40-90D 13-3/16 13/32 13/32 14
HSU40-13.18-40-90DV 13-3/16 13/32 13/32 14
HSU50-11.00-50-90D 11 1/2 1/2 12
HSU50-11.00-50-90DV 11 1/2 1/2 12
HSU50-13.00-50-90D 13 1/2 1/2 14
