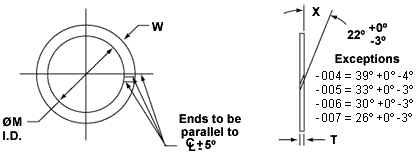

SPLIT PTFE BACKUP RING SIZE CHART
| DASH NO. |
DIM "M" |
DIM "T" |
DIM "W" |
< "X" |
| 4 |
0.109 |
.045/.052 |
.052/.054 |
39 |
| 5 |
0.124 |
.045/.052 |
.052/.054 |
33 |
| 6 |
0.14 |
.045/.052 |
.052/.054 |
30 |
| 7 |
0.171 |
.045/.052 |
.052/.054 |
26 |
| 8 |
0.202 |
.045/.052 |
.052/.054 |
22 |
| 9 |
0.234 |
.045/.052 |
.052/.054 |
22 |
| 10 |
0.265 |
.045/.052 |
.052/.054 |
22 |
| 11 |
0.327 |
.045/.052 |
.052/.054 |
22 |
| 12 |
0.39 |
.045/.052 |
.052/.054 |
22 |
| 13 |
0.455 |
.045/.052 |
.052/.054 |
22 |
| 14 |
0.518 |
.045/.052 |
.052/.054 |
22 |
| 15 |
0.58 |
.045/.052 |
.052/.054 |
22 |
| 16 |
0.643 |
.045/.052 |
.052/.054 |
22 |
| 17 |
0.705 |
.045/.052 |
.052/.054 |
22 |
| 18 |
0.768 |
.045/.052 |
.052/.054 |
22 |
| 19 |
0.83 |
.045/.052 |
.052/.054 |
22 |
| 20 |
0.898 |
.045/.052 |
.052/.054 |
22 |
| 21 |
0.96 |
.045/.052 |
.052/.054 |
22 |
| 22 |
1.023 |
.045/.052 |
.052/.054 |
22 |
| 23 |
1.085 |
.045/.052 |
.052/.054 |
22 |
| 24 |
1.148 |
.045/.052 |
.052/.054 |
22 |
| 25 |
1.21 |
.045/.052 |
.052/.054 |
22 |
| 26 |
1.273 |
.045/.052 |
.052/.054 |
22 |
| 27 |
1.335 |
.045/.052 |
.052/.054 |
22 |
| 28 |
1.398 |
.045/.052 |
.052/.054 |
22 |
| 110 |
0.39 |
.045/.052 |
.085/.087 |
22 |
| 111 |
0.452 |
.045/.052 |
.085/.087 |
22 |
| 112 |
0.515 |
.045/.052 |
.085/.087 |
22 |
| 113 |
0.577 |
.045/.052 |
.085/.087 |
22 |
| 114 |
0.64 |
.045/.052 |
.085/.087 |
22 |
| 115 |
0.702 |
.045/.052 |
.085/.087 |
22 |
| 116 |
0.765 |
.045/.052 |
.085/.087 |
22 |
| 117 |
0.832 |
.045/.052 |
.085/.087 |
22 |
| 118 |
0.895 |
.045/.052 |
.085/.087 |
22 |
| 119 |
0.957 |
.045/.052 |
.085/.087 |
22 |
| 120 |
1.02 |
.045/.052 |
.085/.087 |
22 |
| 121 |
1.082 |
.045/.052 |
.085/.087 |
22 |
| 122 |
1.145 |
.045/.052 |
.085/.087 |
22 |
| 123 |
1.207 |
.045/.052 |
.085/.087 |
22 |
| 124 |
1.27 |
.045/.052 |
.085/.087 |
22 |
| 125 |
1.332 |
.045/.052 |
.085/.087 |
22 |
| 126 |
1.397 |
.045/.052 |
.085/.087 |
22 |
| 127 |
1.459 |
.045/.052 |
.085/.087 |
22 |
| 128 |
1.522 |
.045/.052 |
.085/.087 |
22 |
| 129 |
1.584 |
.045/.052 |
.085/.087 |
22 |
| 130 |
1.647 |
.045/.052 |
.085/.087 |
22 |
| 131 |
1.709 |
.045/.052 |
.085/.087 |
22 |
| 132 |
1.772 |
.045/.052 |
.085/.087 |
22 |
| 133 |
1.834 |
.045/.052 |
.085/.087 |
22 |
| 134 |
1.897 |
.045/.052 |
.085/.087 |
22 |
| 135 |
1.959 |
.045/.052 |
.085/.087 |
22 |
| 136 |
2.022 |
.045/.052 |
.085/.087 |
22 |
| 137 |
2.084 |
.045/.052 |
.085/.087 |
22 |
| 138 |
2.147 |
.045/.052 |
.085/.087 |
22 |
| 139 |
2.209 |
.045/.052 |
.085/.087 |
22 |
| 140 |
2.258 |
.045/.052 |
.085/.087 |
22 |
| 141 |
2.32 |
.045/.052 |
.085/.087 |
22 |
| 142 |
2.383 |
.045/.052 |
.085/.087 |
22 |
| 143 |
2.445 |
.045/.052 |
.085/.087 |
22 |
| 144 |
2.508 |
.045/.052 |
.085/.087 |
22 |
| 145 |
2.57 |
.045/.052 |
.085/.087 |
22 |
| 146 |
2.633 |
.045/.052 |
.085/.087 |
22 |
| 147 |
2.695 |
.045/.052 |
.085/.087 |
22 |
| 148 |
2.758 |
.045/.052 |
.085/.087 |
22 |
| 149 |
2.82 |
.045/.052 |
.085/.087 |
22 |
| 210 |
0.766 |
.045/.052 |
.118/.120 |
22 |
| 211 |
0.828 |
.045/.052 |
.118/.120 |
22 |
| 212 |
0.891 |
.045/.052 |
.118/.120 |
22 |
| 212 |
4.006 |
.045/.052 |
.118/.120 |
22 |
| 213 |
0.953 |
.045/.052 |
.118/.120 |
22 |
| 214 |
1.016 |
.045/.052 |
.118/.120 |
22 |
| 215 |
1.078 |
.045/.052 |
.118/.120 |
22 |
| 216 |
1.141 |
.045/.052 |
.118/.120 |
22 |
| 217 |
1.203 |
.045/.052 |
.118/.120 |
22 |
| 218 |
1.266 |
.045/.052 |
.118/.120 |
22 |
| 219 |
1.334 |
.045/.052 |
.118/.120 |
22 |
| 220 |
1.397 |
.045/.052 |
.118/.120 |
22 |
| 221 |
1.459 |
.045/.052 |
.118/.120 |
22 |
| 222 |
1.522 |
.045/.052 |
.118/.120 |
22 |
| 223 |
1.647 |
.045/.052 |
.118/.120 |
22 |
| 224 |
1.772 |
.045/.052 |
.118/.120 |
22 |
| 225 |
1.897 |
.045/.052 |
.118/.120 |
22 |
| 226 |
2.022 |
.045/.052 |
.118/.120 |
22 |
| 227 |
2.147 |
.045/.052 |
.118/.120 |
22 |
| 228 |
2.272 |
.045/.052 |
.118/.120 |
22 |
| 229 |
2.397 |
.045/.052 |
.118/.120 |
22 |
| 230 |
2.522 |
.045/.052 |
.118/.120 |
22 |
| 231 |
2.631 |
.045/.052 |
.118/.120 |
22 |
| 232 |
2.756 |
.045/.052 |
.118/.120 |
22 |
| 233 |
2.881 |
.045/.052 |
.118/.120 |
22 |
| 234 |
3.006 |
.045/.052 |
.118/.120 |
22 |
| 235 |
3.131 |
.045/.052 |
.118/.120 |
22 |
| 236 |
3.256 |
.045/.052 |
.118/.120 |
22 |
| 237 |
3.381 |
.045/.052 |
.118/.120 |
22 |
| 238 |
3.506 |
.045/.052 |
.118/.120 |
22 |
| 239 |
3.631 |
.045/.052 |
.118/.120 |
22 |
| 240 |
3.756 |
.045/.052 |
.118/.120 |
22 |
| 241 |
3.881 |
.045/.052 |
.118/.120 |
22 |
| 243 |
4.131 |
.045/.052 |
.118/.120 |
22 |
| 244 |
4.256 |
.045/.052 |
.118/.120 |
22 |
| 245 |
4.381 |
.045/.052 |
.118/.120 |
22 |
| 246 |
4.506 |
.045/.052 |
.118/.120 |
22 |
| 247 |
4.631 |
.045/.052 |
.118/.120 |
22 |
| 325 |
1.513 |
.065/.075 |
.182/.184 |
22 |
| 326 |
1.638 |
.065/.075 |
.182/.184 |
22 |
| 327 |
1.763 |
.065/.075 |
.182/.184 |
22 |
| 328 |
1.888 |
.065/.075 |
.182/.184 |
22 |
| 329 |
2.013 |
.065/.075 |
.182/.184 |
22 |
| 330 |
2.138 |
.065/.075 |
.182/.184 |
22 |
| 331 |
2.268 |
.065/.075 |
.182/.184 |
22 |
| 332 |
2.393 |
.065/.075 |
.182/.184 |
22 |
| 333 |
2.518 |
.065/.075 |
.182/.184 |
22 |
| 334 |
2.643 |
.065/.075 |
.182/.184 |
22 |
| 335 |
2.768 |
.065/.075 |
.182/.184 |
22 |
| 336 |
2.893 |
.065/.075 |
.182/.184 |
22 |
| 337 |
3.018 |
.065/.075 |
.182/.184 |
22 |
| 338 |
3.143 |
.065/.075 |
.182/.184 |
22 |
| 339 |
3.273 |
.065/.075 |
.182/.184 |
22 |
| 340 |
3.398 |
.065/.075 |
.182/.184 |
22 |
| 341 |
3.523 |
.065/.075 |
.182/.184 |
22 |
| 342 |
3.648 |
.065/.075 |
.182/.184 |
22 |
| 343 |
3.773 |
.065/.075 |
.182/.184 |
22 |
| 344 |
3.898 |
.065/.075 |
.182/.184 |
22 |
| 345 |
4.028 |
.065/.075 |
.182/.184 |
22 |
| 346 |
4.153 |
.065/.075 |
.182/.184 |
22 |
| 347 |
4.278 |
.065/.075 |
.182/.184 |
22 |
| 348 |
4.403 |
.065/.075 |
.182/.184 |
22 |
| 349 |
4.528 |
.065/.075 |
.182/.184 |
22 |
| 425 |
4.551 |
.100/.110 |
.235/.237 |
22 |
| 426 |
4.676 |
.100/.110 |
.235/.237 |
22 |
| 427 |
4.801 |
.100/.110 |
.235/.237 |
22 |
| 428 |
4.926 |
.100/.110 |
.235/.237 |
22 |
| 429 |
5.051 |
.100/.110 |
.235/.237 |
22 |
| 430 |
5.176 |
.100/.110 |
.235/.237 |
22 |
| 431 |
5.301 |
.100/.110 |
.235/.237 |
22 |
| 432 |
5.426 |
.100/.110 |
.235/.237 |
22 |
| 433 |
5.551 |
.100/.110 |
.235/.237 |
22 |
| 434 |
5.676 |
.100/.110 |
.235/.237 |
22 |
| 435 |
5.801 |
.100/.110 |
.235/.237 |
22 |
| 436 |
5.926 |
.100/.110 |
.235/.237 |
22 |
| 437 |
6.051 |
.100/.110 |
.235/.237 |
22 |
| 438 |
6.274 |
.100/.110 |
.235/.237 |
22 |
| 439 |
6.524 |
.100/.110 |
.235/.237 |
22 |
| 440 |
6.774 |
.100/.110 |
.235/.237 |
22 |
| 441 |
7.024 |
.100/.110 |
.235/.237 |
22 |
| 442 |
7.274 |
.100/.110 |
.235/.237 |
22 |
| 443 |
7.524 |
.100/.110 |
.235/.237 |
22 |
| 444 |
7.774 |
.100/.110 |
.235/.237 |
22 |
| 445 |
8.024 |
.100/.110 |
.235/.237 |
22 |
| 446 |
8.524 |
.100/.110 |
.235/.237 |
22 |
| 447 |
9.024 |
.100/.110 |
.235/.237 |
22 |
| 448 |
9.524 |
.100/.110 |
.235/.237 |
22 |
| 449 |
10.024 |
.100/.110 |
.235/.237 |
22 |
| 450 |
10.524 |
.100/.110 |
.235/.237 |
22 |
| 451 |
11.024 |
.100/.110 |
.235/.237 |
22 |
| 452 |
11.524 |
.100/.110 |
.235/.237 |
22 |
| 453 |
12.024 |
.100/.110 |
.235/.237 |
22 |
| 454 |
12.524 |
.100/.110 |
.235/.237 |
22 |
| 455 |
13.024 |
.100/.110 |
.235/.237 |
22 |
| 456 |
13.524 |
.100/.110 |
.235/.237 |
22 |
| 457 |
14.024 |
.100/.110 |
.235/.237 |
22 |
| 458 |
14.524 |
.100/.110 |
.235/.237 |
22 |
| 459 |
15.024 |
.100/.110 |
.235/.237 |
22 |
| 460 |
15.524 |
.100/.110 |
.235/.237 |
