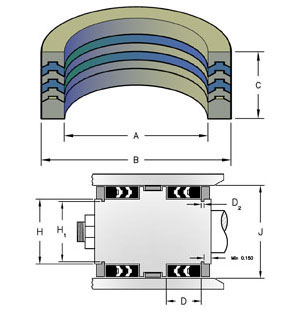

Hydrolock Vee Packing Sets

These vee sets utilize hytrel & nylon vees to cover pressure from 0 to 6,000 psi and provide excellent extrusion resistance. Male & female bearings are molded from glass filled nylon. NOTE: These vee sets do not contain guidelock bearings. They are sold seperately (designated by the 'HDLG-' product code prefix).

SEAL INFORMATION
MATERIAL HYTREL and NYLON
TEMPERATURE RANGE -40° to +220° F
PRESSURE RANGE 0 to 6,000 PSI
PART NUMBER (Prefix) - (# of vees) - (OD) - (Bearing Height)
Part # Bore (in) I.D. (in) Height (in) O.D. (in)
HDLV-1740-350 - 3 3/4 3-1/2
HDLV-1740-400 - 3-1/2 3/4 4
HDLV-1740-500 - 4-1/2 3/4 5
HDLV-1740-600 - 5-1/2 3/4 6
HDLV-1740-627 - 5-3/4 3/4 6.265
HDLV-1741-175 - 1-1/4 53-64 1-3/4
HDLV-1741-275-100FB - 2-1/4 1-5/8 2-3/4
HDLV-1741-300-050FB - 2-1/2 1-1/8 3
HDLV-1741-350-050FB - 3 1-1/8 3-1/2
HDLV-1741-400-050FB - 3-1/2 1-1/8 4
HDLV-1741-425-100FB - 3-3/4 1-5/8 4-1/4
HDLV-1741-450-050FB - 4 1-1/8 4-1/2
HDLV-1741-500 - 4-1/2 3/4 5
HDLV-1741-500-050FB - 4-1/2 1-1/8 5
HDLV-1741-500-075FB - 4-1/2 1-3/8 5
HDLV-1741-600-050FB - 5-1/2 1-1/8 6
HDLV-1741-725 - 6-3/4 7/8 7-1/4
HDLV-1742-200 - 1-1/2 1 2
HDLV-1742-225 - 1-3/4 1 2-1/4
HDLV-1742-250 - 2 1 2-1/2
HDLV-1742-250-100FB - 2 1-3/4 2-1/2
HDLV-1742-275 - 2-1/4 1 2-3/4
HDLV-1742-275-100FB - 2-1/4 1-3/4 2-3/4
HDLV-1742-300 - 2-1/2 1 3
HDLV-1742-300-100FB - 2-1/2 1-3/4 3
HDLV-1742-312-100FB - 2-1/2 1-11/16 3-1/8
HDLV-1742-325 - 2-3/4 1 3-1/4
HDLV-1742-325-100FB - 2-3/4 1-3/4 3-1/4
HDLV-1742-350 - 3 1 3-1/2
HDLV-1742-350-100FB - 3 1-3/4 3-1/2
HDLV-1742-375 - 3-1/4 1 3-3/4
HDLV-1742-400 - 3-1/2 1 4
HDLV-1742-400-100FB - 3-1/2 1-3/4 4
HDLV-1742-450 - 4 1 4-1/2
HDLV-1742-450-100FB - 4 1-3/4 4-1/2
HDLV-1742-500 - 4-1/2 1 5
HDLV-1742-500-100FB - 4-1/2 1-3/4 5
HDLV-1742-550 - 5 1 5-1/2
HDLV-1742-550-050FB - 5 1-1/4 5-1/2
HDLV-1742-600 - 5-1/2 1 6
HDLV-1742-600-100FB - 5-1/2 1-3/4 6
HDLV-1742-650 - 6 1 6-1/2
HDLV-1742-650-050FB - 6 1-1/4 6-1/2
HDLV-1742-650-100FB - 6 1-3/4 6-1/2
HDLV-1742-700 - 6-1/2 1 7
HDLV-1742-700-100FB - 6-1/2 1-3/4 7
HDLV-1742-750 - 7 1 7-1/2
HDLV-1742-750-100FB - 7 1-3/4 7-1/2
HDLV-1742-800 - 7-1/2 1 8
HDLV-1742-800-100FB - 7-1/2 1-3/4 8
HDLV-1742-850-100FB - 8 1-3/4 8-1/2
HDLV-1742-900 - 8-1/2 1 9
HDLV-1742-900-100FB - 8-1/2 1-3/4 9
HDLV-275-200-175 - 2 1-3/4 2-3/4
HDLV-300-250-082 - 2-1/2 .820 3
HDLV-300-250-087 - 2-1/2 7/8 3.
HDLV-350-300-082 - 3 .820 3-1/2
HDLV-375-300-175 - 3 1-3/4 3-3/4
HDLV-425-350-087 - 3-1/2 7/8 4-1/4
HDLV-450-400-082 - 4 .820 4-1/2
HDLV-503-402-152 - 4.02 1.527 5.03
HDLV-550-500-082 - 5 .820 5-1/2
HDLV-603-503-150 - 5.03 1-1/2 6.03
HDLV-703-603-150 - 6.03 1-1/2 7.03
HDLV-800-080 - 7-1/2 0.800 8
