Sanitary Gaskets for pipe coupling

ORDERING CODES CLAMP GASKETS
ITEM NUMBERS

Back to Sanitary Gasket

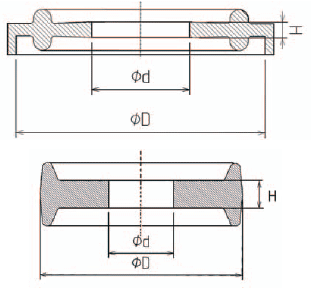

ON d
BORE
D H FLANGE
DIA.
EPDM/
400
VMQ/
300
VMQ/
600
FPM/
300
NBR/
001
PTFE/
598
PTFE
ENVELOPE
KALREZ MINI
CLAMP
IS02852 IS01127 DIN32676
4 4 21.84 2 25.4 425675






X


4\1 4.2 21.84 2 25.4 425556
425571




X


6 6.2 34 2.1 34

425618







X
8\1 6.2 21.84 2 25.4 425557
425674

425472

X

X

6.22 21.84 2 25.4







X


8\2 8 21.84 2 25.4 425670

425669



X

X
10\3 8 21.84 2 25.4




425471

X

X
8\4 8.2 21.84 2.1 25.4 425555
425554




X

X
8 8.2 34 2.1 34

425676







X
12.7\1 9.6 21.84 2 25.4 425558
425559




X

X
12\2 9.7 21.84 2 25.4




425469

X


10\2 10 21.84 2 25.4 425672

425671



X


12\2 10 21.84 2 25.4





425613
X


10 10 34 2.1 34




425700




X
10 10.2 34 2.1 34 425466 425663 425643 425498






X
8 10.3 34 2.1 34









x
8 10.5 50.5 2.1 50.5 425593
425580






X
12.7 10.5 21.84 2 25.4 425449 425456
425452
425661
425442 X

X
8\3 10.5 21.84 2 25.4 425604






X

X
11.3 11.3 21.84 2 25.4 425706

425704



X


12\1 12 21.84 2 25.4 425668

425699



X


14\1 12 21.84 2 25.4




425623

X


10\1 12.3 21.84 2 25.4 425496






X


13 13 21.84 2 25.4 425464






X


10 13.5 50.5 2.1 50.5




425609



X
14\2 14 21.84 2 25.4 425666

425667



X


14\3 14.2 21.84 2 25.4 425551
425552




X

X
10\1 14.2 34 2.1 34 425687








X
10 14.2 50.5 2.1 50.5 425594
425581






X
14.5 14.5 21.84 2 25.4


425705



X


17.2 15.4 34 2.1 34








X

19.05 15.9 21.84 2 25.4 425447 425458 425553 425457


425443 X

X
18\1 16 21.84 2 25.4 425495

425617
425470 425494
X

X
15 16.2 34 2.1 34 425467 425662 425644 425444
425626




X
15\1 18.1 34 2.1 34

425596






X
15 18.1 50.5 2.1 50.5




425607



X
15 18.3 50.5 2.1 50.5 425576
425582 425679





X X
21.3 19.5 34 2.1 34








X

20 20.2 34 2.1 34 425465 425474 425645 425445 425468 425625



X
1" 22.3 50.5 2.1 50.5 425744
425747 425750






X
25 22.8 50.5 2.1 50.5 425401 425390 425540 425396 425400 425522 425530 425435
X

20 22.9 50.5 2.1 50.5









X
20 23.9 50.5 2.1 50.5 425595
425583 425680
425610



X X
25 26.2 50.5 2.1 50.5 425475 425477 425646 425476
425453 425714



x
25 29.7 50.5 2.1 50.5




425611



X
25 29.9 50.5 2.1 50.5 425597
425584 425681





X X
25 30.5 50.5 2.1 50.5









X
33.7 31.5 50.5 2.1 50.5








X


ON d
BORE
D H FLANGE
DIA.
EPDMI
400
VMQ/
300
VMQ/
600
FPM/
300
NBR/
001
PTFE!
598
PTFE
ENVELOPE
KALREZ MINI
CLAMP
IS02852 IS01127 DIN32676
32 32.2 50.5 2.1 50.5 425478
425619 425479
425624 425703



X
11/2." 35 50.5 2.1 50.5 425745
425748 425751






X
38 35.6 50.5 2.1 50.5




425521


X

38 35.8 50.5 2.1 50.5 425403 425391 425541 425397 425402
425531 425432
X

40 37.8 64 2.1 64








X

40 38.2 50.5 2.1 50.5 425480 425481 425648 425482
425454




X
32 38.6 64 2.1 64 425598
425585 425682
425621



X X
40 44.3 64 2.1 64




425612



X
40 44.5 64 2.1 64 425577
425579 425683





X X
2" 47.7 64 2.1 64 425746
425749 425752






X
51 48.8 64 2.1 64 425405 425392 425542 425398 425404 425520 425532 425436
X

50 50.2 64 2.1 64 425483 425484 425649 425493
425455




X
50 50.3 77.5 2.1 77.5









X
50 56.5 77.5 2.1 77.5 425599
425586 425684
425606 425719


X X
63.5 60.5 77.5 2.1 77.5 425407 425393 425543 425434 425406 425523. 425533 425437
X
X
65 66.2 91 2.1 91 425485 425499 425650 425486






X
70 67 91 2.1 91








X

65 72.3 91 2.1 91 425628
425587 425685
425701



X X
65 72.9 91 2.1 91









X
76.1 73.1 91 2.1 91 425409 425394 425544 425433 425408 425524 425534

X
x
80 80.2 106 2.1 106









X
80 81.2 106 2.1 106 425487 425664 425651 425711 425463





X
80 84.5 106 2.1 106 425635
425588 425686
425702



X X
88.9 85.1 106 2.1 106 425451



425622


X

101.6 97.8 119 2.1 119 425411 425395 425545 425446 425410 425525 425535

X

100 100.2 119 2.1 119 425489 425504 425652 425488






X
100 109.9 130 2.1 130 425630
425589






X X
114.3 109.3 130 2.1 130 425638
425653 425733 425729 425528


X

127 120.2 144.5 2.1 144.5 425639
425654





X

125 125.2 155 2.1 155 425636









X
139.7 135.9 155 2.1 155 425735

425734 425736



X

152.4 147.2 167 2.1 167 425640
425655





X
X
150 150.2 183 2.1 183 425637

425490






X
150 163.3 182.7 2.1 182.7 425631
425590
425713




X
168.3 163.3 183 2.1 183 425399


425726 425526


X
X
203.2 198.2 217.5 2.1 217.5 425641
425656





X

200 200.2 233.5 2.1 233.5 425627


425720
425688



X
200 214.1 233.5 2.1 233.5 425632
425591





X X X
219.1 214.1 233.5 2.1 233.5


425732 425427 425658 425492

X X X
254 250.2 268 2.1 268 425642
425657





X

250 266.5 287.5 2.1 287.5 425633
425629






X
304.8 300 319 2.1 319
425678






X

300 316.1 338.3 2.1 338.3 425634
425592






X


25.4 2 25.4 425614
425550

425473

X X X X


34 2.1 34 425562
425560





X X X


50.5 2.1 50.5 425563
425561

425547


X X X


77.5 2.1 77.5 425565







X X X


91 2.1 91 425566







X X X
