All Seals aluminum shielded air vent panels are fabricated from an aluminum honeycomb medium installed in an aluminum frame. The honeycomb provides high levels of shielding with a minimum resistance to air flow.

APPLICATIONS:
All Seals honeycomb vents are recommended for installation in electronic equipment enclosures that require high levels of EMI Sielding while allowing for adequate ventilation. East Coast Shielding honeycomb vents can be installed in applications requiring shielding on either the inlet or outlet air flows.


AVAILABLE CONFIGURATIONS:
All Seals honeycomb vents are typically constructed of 0.500"(12.70) thickness, 90 degree aluminum honeycomb, with a 0.125"(3.18) cell size. The honeycomb is also available in 0.250"(6.35) thickness and cell sizes of 0.062"(1.57) and 0.188"(4.78). For drip proof construction, the cells are also available slanted at 30, 45 and 60 degrees from the horizontal. For mounting, the panels are available with captive inserts, through holes or no holes. The completed assembly can be chromate conversion coated or tin plated for protection. All Seals honeycomb vents are supplied with an attached mesh, strip, or conductive silicone fabricated gasket. For shapes, sizes and materials not listed, please contact East Coast Shielding for additional information.

MATERIAL SPECIFICATIONS

• FRAME

• Aluminum alloy 6063-T4 per QQ-A-200/8

• HONEYCOMB

• MIL-C-7438

• FASTENER

• Aluminum captive insert, 8-32 UNC-3B

• CHROMATE FINISH

• MIL-C-5541C

• TIN-PLATING

• MIL-T-10727

EMI Shielding Performance: 1/8 Cell Size, 1/2 Thick


Standard Honeycomb Finish

H-Field

E-Field

Plane Wave

100kHz

10MHz

1 GHz

10 GHz

Chem Film
40 dB
75 dB
60 dB
40 dB
Tin
70 dB
125 dB
100 dB
80 dB
Nickel
75 dB
130 dB
115 dB
95 dB











Cross-Cell Honeycomb Finish

H-Field

E-Field

Plane Wave

100kHz

10MHz

1 GHz

10 GHz

Chem Film

60 dB

105 dB

90 dB

80 dB

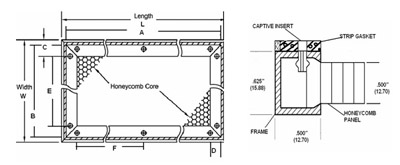

OVERALL DIMENSIONS

EFFECTIVE AIR FLOW AREA

FRAME DIMENSIONS

HOLE SPACING

NO. FASTENERS

PART NUMBER

SIDE (W)

SIDE (L)

SIDE
W

SIDE
L

W

L

IN (CM)

A

B

C

D

E

F

3(76.20)

3(76.20)

4

2(50.80)

2(50.80)

1.25(31.75)

1.25(31.75)

-

-

1

1

210-0001

4(101.60)

4(101.60)

9(58)

3(76.20)

3(76.20)

1.75(44.45)

1.75(44.45)

-

-

1

1

210-0002

4(101.60)

6(152.40)

15(97)

3(76.20)

5(127.00)

1.75(44.45)

1.00(25.40)

-

3.50(88.90)

1

2

210-0003

4(101.60)

8(203.20)

21(135)

3(76.20)

7(177.80)

1.75(44.45)

0.75(19.05)

-

3.00(76.20)

1

3

210-0004

4(101.60)

12(304.80)

33(213)

3(76.20)

11(279.40)

1.75(44.45)

1.25(31.75)

-

3.00(76.20)

1

4

210-0005

5(127.00)

5(127.00)

16(103)

4(101.60)

4(101.60)

2.25(57.15)

0.75(19.05)

-

3.00(76.20)

1

2

210-0006

5(127.00)

7(177.80)

24(155)

4(101.60)

6(152.40)

2.25(57.15)

1.50(38.10)

-

3.50(88.90)

1

2

210-0007

5(127.00)

10(254.00)

36(232)

4(101.60)

9(228.60)

2.25(57.15)

1.25(31.75)

-

3.50(88.90)

1

3

210-0008

6(152.40)

6(152.40)

25(161)

5(127.00)

5(127.00)

1.00(25.40)

1.00(25.40)

3.50(88.90)

3.50(88.90)

2

2

210-0009

6(152.40)

8(203.20)

35(226)

5(127.00)

7(177.80)

1.25(31.75)

0.75(19.05)

3.00(76.20)

3.00(76.20)

2

3

210-0010

6(152.40)

12(304.80)

55(355)

5(127.00)

11(279.40)

1.00(25.40)

1.25(31.75)

3.50(88.90)

3.00(76.20)

2

4

210-0011

6(152.40)

18(457.20)

85(548)

5(127.00)

17(431.80)

1.00(25.40)

1.25(31.75)

3.50(88.90)

3.75(95.25)

2

5

210-0012

7(177.80)

7(177.80)

36(232)

6(152.40)

6(152.40)

1.50(38.10)

1.50(38.10)

3.50(88.90)

3.50(88.90)

2

2

210-0013

7(177.80)

10(254.00)

54(348)

6(152.40)

9(228.60)

1.50(38.10)

1.25(31.75)

3.50(88.90)

3.50(88.90)

2

3

210-0014

7(177.80)

14(355.60)

78(503)

6(152.40)

13(330.20)

1.50(38.10)

1.50(38.10)

3.50(88.90)

3.50(88.90)

2

4

210-0015

8(203.20)

8(203.20)

49(316)

7(177.80)

7(177.80)

2.00(50.80)

0.75(19.05)

3.50(88.90)

3.00(76.20)

2

3

210-0016

8(203.20)

12(304.80)

77(497)

7(177.80)

11(279.40)

0.75(19.05)

1.25(31.75)

3.00(76.20)

3.00(76.20)

3

4

210-0017

8(203.20)

16(406.40)

105(677)

7(177.80)

15(381.00)

0.75(19.05)

1.25(31.75)

3.00(76.20)

3.25(82.55)

3

5

210-0018

10(254.00)

10(254.00)

81(522)

9(228.60)

9(228.60)

1.25(31.75)

1.25(31.75)

3.50(88.90)

3.50(88.90)

3

3

210-0019

10(254.00)

14(355.60)

117(755)

9(228.60)

13(330.20)

1.25(31.75)

1.50(38.10)

3.50(88.90)

3.50(88.90)

3

4

210-0020

10(254.00)

18(457.20)

153(987)

9(228.60)

17(431.80)

1.25(31.75)

1.25(31.75)

3.50(88.90)

3.75(95.25)

3

5

210-0021

12(304.80)

12(304.80)

121(780)

11(279.40)

11(279.40)

1.25(31.75)

1.25(31.75)

3.00(76.20)

3.00(76.20)

4

4

210-0022

12(304.80)

16(406.40)

165(1064)

11(279.40)

15(381.00)

1.25(31.75)

1.25(31.75)

3.00(76.20)

3.25(82.55)

4

5

210-0023

12(304.80)

20(508.00)

209(1348)

11(279.40)

19(482.60)

1.25(31.75)

1.00(25.40)

3.00(76.20)

3.50(88.90)

4

6

210-0024

12(304.80)

24(609.60)

253(1632)

11(279.40)

23(584.20)

1.25(31.75)

1.25(31.75)

3.00(76.20)

3.50(88.90)

4

7

210-0025
