Bondwand
| The hand-held or bench
top mountable Bondwand emits the highest UV intensity
of any comparable lamp on the market. The Bondwand employs
a built-in, variable exposure timer of one, two, and three
minute intervals as well as continuous and is an ideal
tool for research and production applications. The Bondwand
delivers 10mW/cm ² of controlled ultraviolet energy
at a peak wavelength of 350nm or at 450nm visible cure.
When using an available Black Light Lamp the Bondwand
becomes an excellent and highly effective NDT inspection
device for boards, welds and plastics. |
 |
Specifications
- UV Intensity: 10 mW/cm2
@ 350nm
- Input V/W: 120V 50/60Hz,
12 W
- Exposure Area: 5" x
1 3/4"
|
|
Electro-Cure-410
UV Spot System
The compact and rugged design of the EC-410
makes it the ideal wide spectrum spot curing system used to
resolve a number of assembly applications in the electronic,
medical device, and telecommunications industry in either
repair shop or online. With its lightweight 10ounce hand-piece,
and 360 degree swiveling light guide, the EC-410 will resolve
the most complex, geometrically challenged application.
Specifications
- UV Intensity: 90 mW/cm2 @ 365nm
- Input V/W: 120V, 220/240V 50/60Hz, 75
W
LED-100
UV Spot System
The LED-100 is a UV curing system powered
by an advanced Light Emitting Diode (LED) with an output of
1 w/cm2. This compact, hand held unit operates from a batter
and is completely portable. An ergonomically positioned trigger
switch allows comfortable operation while its compact size
allows bonding difficult areas to reach. The microprocessor
provides accurate control of timing functions and an LCD display
shows operational status. This light, easy-to-use, advanced
design is an excellent approach to solving bonding problems
in manufacturing, field service repair and research and development.
Specifications:
- UV Intensity: 1 W/cm2 @ 365nm
- LED life: 50,000 hours
- Battery Charge 900 - 10 second exposures
- Weight: 12 oz. Battery powered
Electro-Cure-5
UV Spot System
The EC-5 microprocessor-based light curing
system is perfect for clean room use, yet rugged enough to
be an asset in the industrial environment. For increased application
flexibility, the EC-5 will accept any liquid light guide or
a standard fixed quartz light guide. The EC-5 is the right
choice for the precision delivery of UV light energy in a
spot form. For Curing light coatings, adhesives, epoxies,
or potting compounds that require high power, the EC-5 is
the affordable choice that does not compromise on power and
reliability.
Specifications:
- UV Intensity: 6 W/cm2 @ 365nm
- Lamp: 50 W short arc mercury
- Lamp Life: 1000 hrs. functional tome
- Panel display: LCD
Electro-Cure-10
UV Spot System
The EC-10 delivers the most UV curing power
you will find in any spot curing system in its price range.
The system is equipped with a rotary electro-magnetic shutter,
digital electronic timer selectable in steps of .1 to 999.9
seconds as well as continuous. The front panel controls may
also be used to vary the light output from 50% to 100% for
precise power control. The system's LCD high contrast panel
clearly displays lamp ignition, lamp ready, exposure time,
lamp hours and lamp change status. The EC-10 is an excellent
choice where accuracy, repeatability and dependability is
needed in any validated production process.
- UV Intensity: 10 W/cm2 @ 365nm
- Lamp: 100 W short arc mercury
- Lamp Life: 1000 hrs. functional time
- Panel display: LCD
Electro-Cure-4001
UV Flood System
The ELC-4001 flood curing system generates
greater than 180 mW/cm2 of UV energy at a peak wavelength
of 365nm. Its versatile modular design answers industries
needs for increased productivity, lower energy costs and an
end to pollution emissions. Whether housed in the optional
height adjustable curing frame or integrated into an automated
manufacturing process its compact design offers a simple solution
to high volume production.
- UV Intensity: 125 mW/cm2 @ 365nm
- Input V/W: Auto-ranging 90V AC- 264V
AC, 50/60Hz
Electro-Cure-500
The EC-500 is a completely contained, operator
safe, light exposure system, powered by four UVA - 350nm lamps
for the photo activation of UVA light curable materials. The
system is available with 450nm or black light lamps. The EC-500
features a digital countdown programmable timer, power down
mode, safety interrupt chamber switch, and an audible end
signal. The system also features a clear rotating turntable
and clear shelf enclosed in a highly reflective exposure chamber
that maximizes completely full exposure.
Specifications
- Radiant Intensity: UVA-365nm, Visible-450nm,
Black Light 350
- Input V/W: 120V/ 50/60Hz 1.5A, 220/240/
50/60Hz
- Chamber Area: 7.5” W x 8”
H x 8.75 “ D
Light
Guides
 |
Electro-Lite light guides are manufactured
of high efficiency image grade fused glass. These light
channeling devices are interchangeable accessories for
use with the EC400, EC403, EC404, EC405, EC410 and EC-410-T.
|
Opilux
Optilux protective eyewear is certified
to completely filter out harmful light wavelengths from 200
to 540 nanometers, providing complete blockage of the ultraviolet
spectrum while providing excellent visibility in the balance
of the visible spectrum. Available in clip on, standard frame,
and side shield styles, Optilux protective eyewear is impact
resistant and is certified to meet the requirements of ANSI
Z87.1.

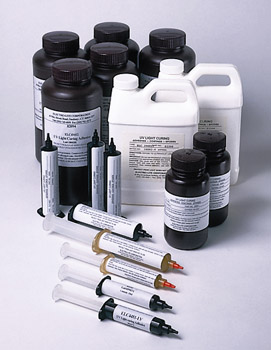

Adhesives
Electro-Lite curable UV adhesive materials
represent a new dimension in light curing technology. The
one part adhesives are solvent free, containing only reactive
components. A highly cross-linked polymeric matrix results
on curing without evaporation or the out gassing of volatiles. |
