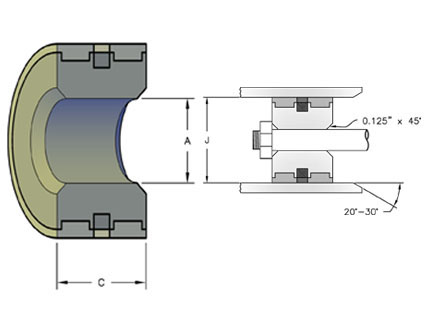

PA Unitized Piston Assemblies

The PA Unitized Pistons are designed to handle a broad range of application parameters. The piston body is machined to exact dimensions and is constructed using four components: A high strength steel body, a non-metallic bearing, a rubber loading ring and a filled PTFE seal ring. The non-metallic bearing is molded to the piston using a special proprietary process.

SEAL INFORMATION
TEMPERATURE RANGE -40° to +275° F
MAX PRESSURE 5,000 PSI
MAX VELOCITY 3 ft / second

Part # Bore (in) Hole Size (in) Piston Width (in)
PA-2.00X0.75X1.00 2.00 +0.002/-0 .75 +0.002/-0 1.00 +0.002/-0
PA-2.50X1.00X1.00 2.50 +0.002/-0 1.00 +0.002/-0 1.00 +0.002/-0
PA-3.50X1.00X1.50 3.50 +0.002/-0 1.00 +0.002/-0 1.50 +0.002/-0
PA-4.00X1.25X1.50 4.00 +0.002/-0 1.25 +0.002/-0 1.50 +0.002/-0
